4G - 1B Transmission and INSTALLATION KIT for 49/53cc Huasheng

T Belt drive runs much more quieter than a chain drive!

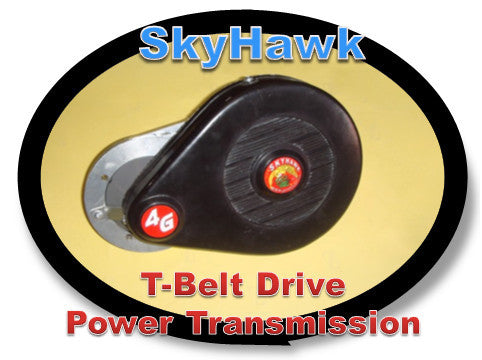

4G Model 1B T-Belt Drive Transmission with installation parts kit;

Everything you need except the engine and bicycle to make a motorized bike.    Engine sold separately:  Customer provides their own donor bicycle.

If you want to use of your bicycle gearing for multi speed see our 10G 1BMS kit.

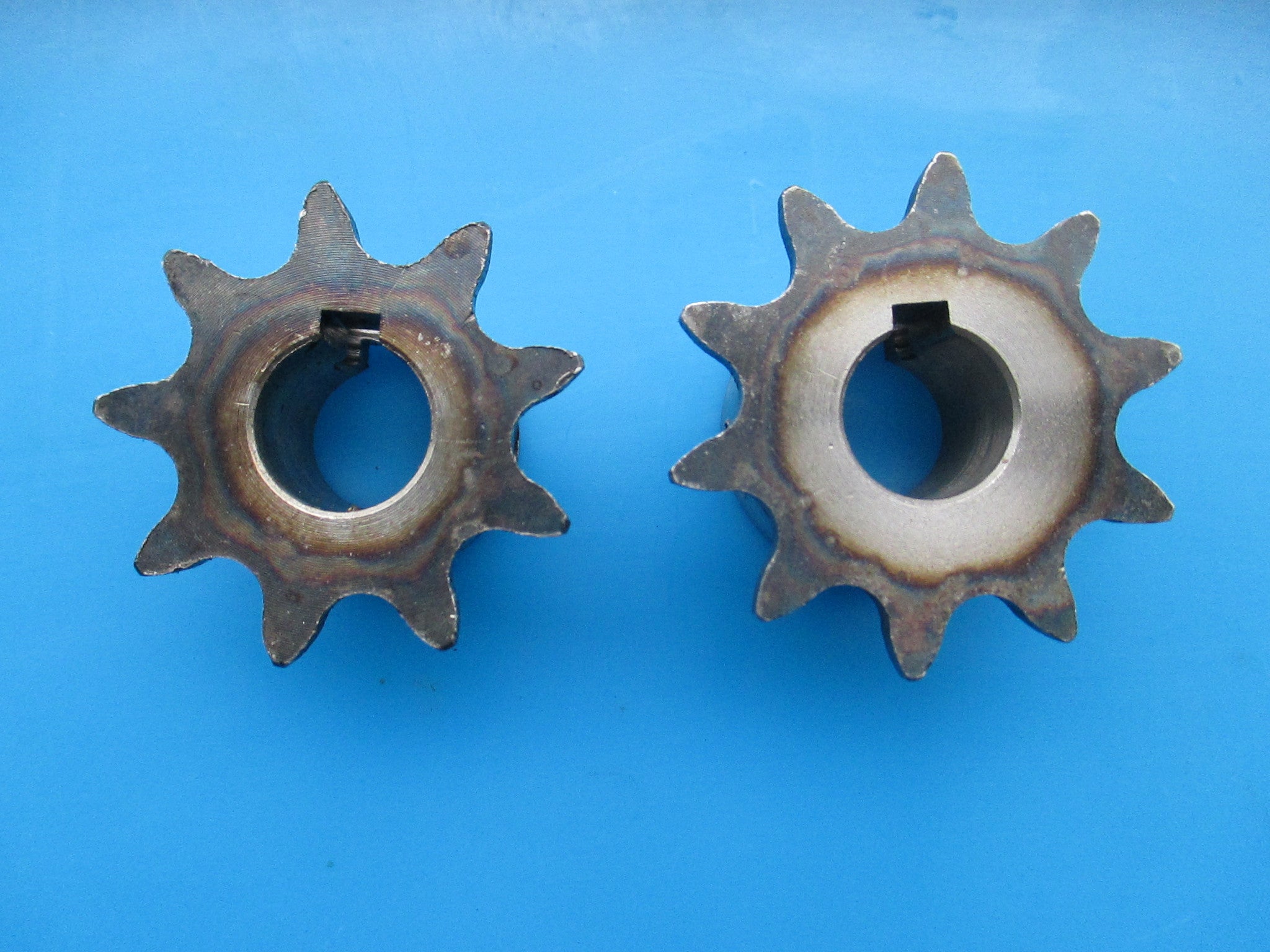

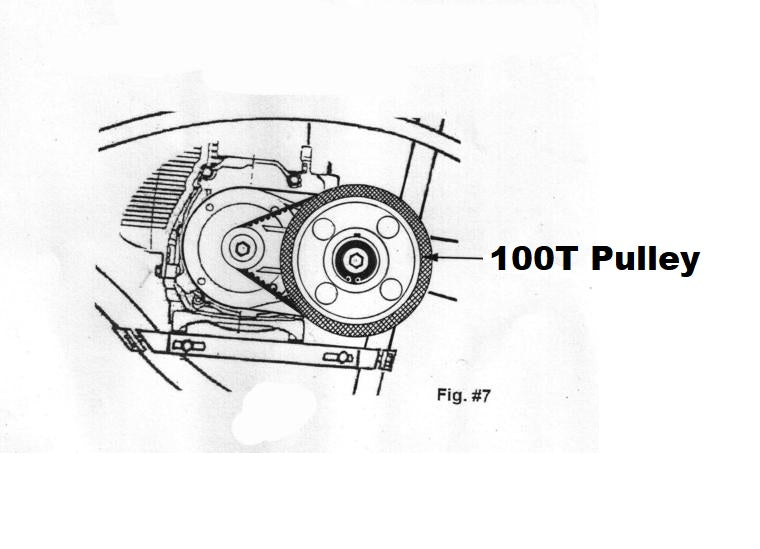

  • 20T drive pulley 100T driven pulley with 9T and 10T slide drive sprockets included.

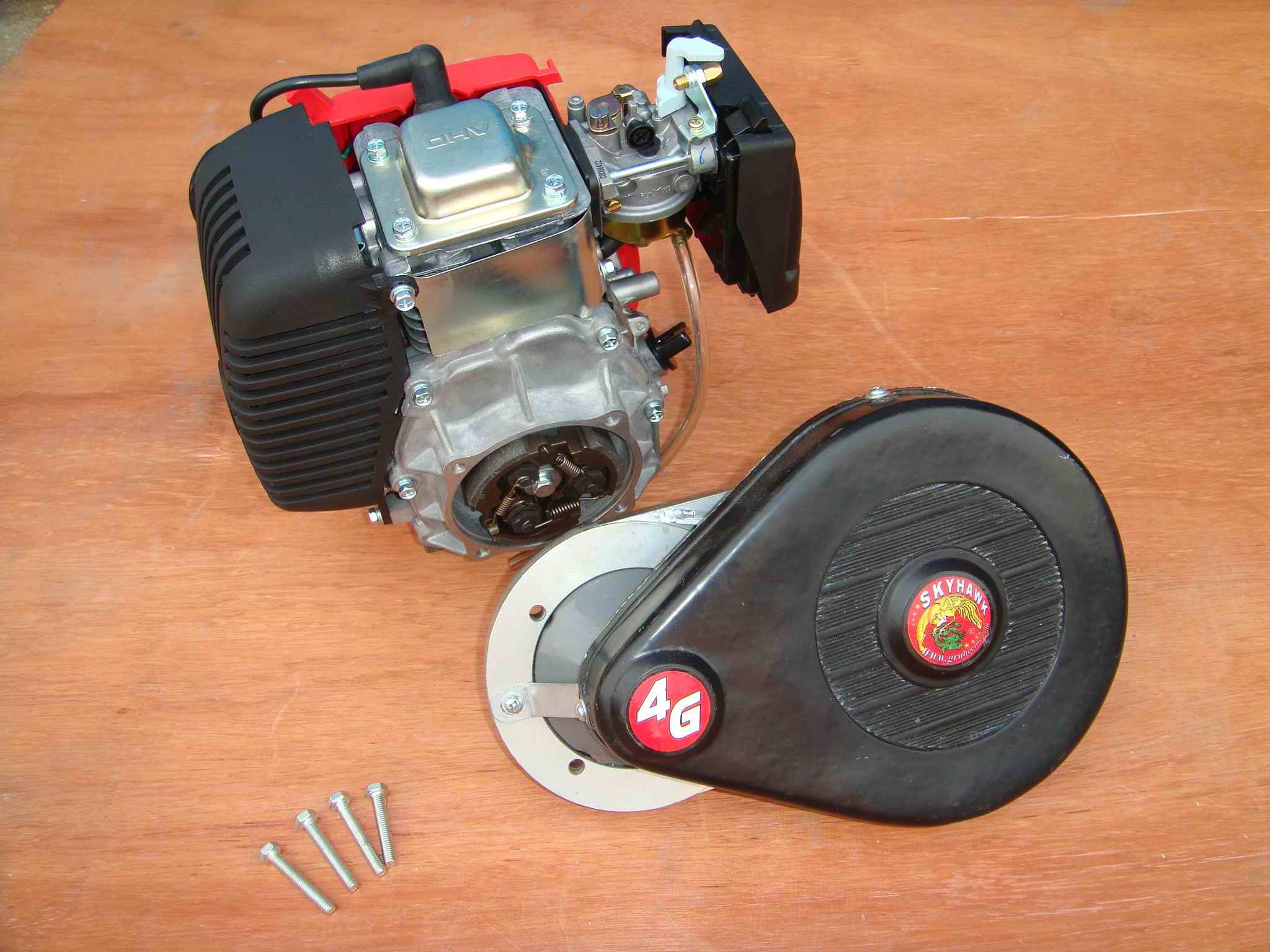

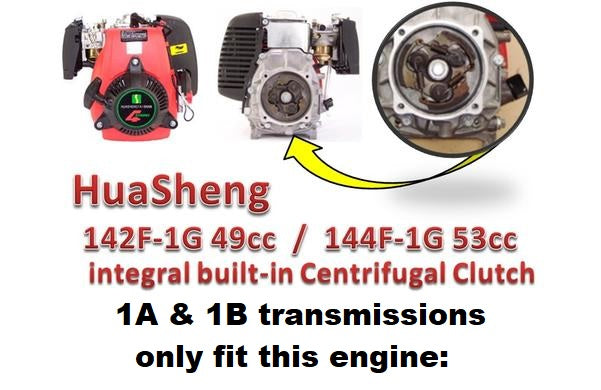

  • 4G 1B Transmission is used on a Huasheng 49cc or 53cc engine with built-in 3 shoe centrifugal clutch.  Engine is sold separately:

  • Will not work on a straight shaft engine, ie: Honda GHX 50

  • Must use this transmission with our 10G 1BMS multi-speed shift kit.

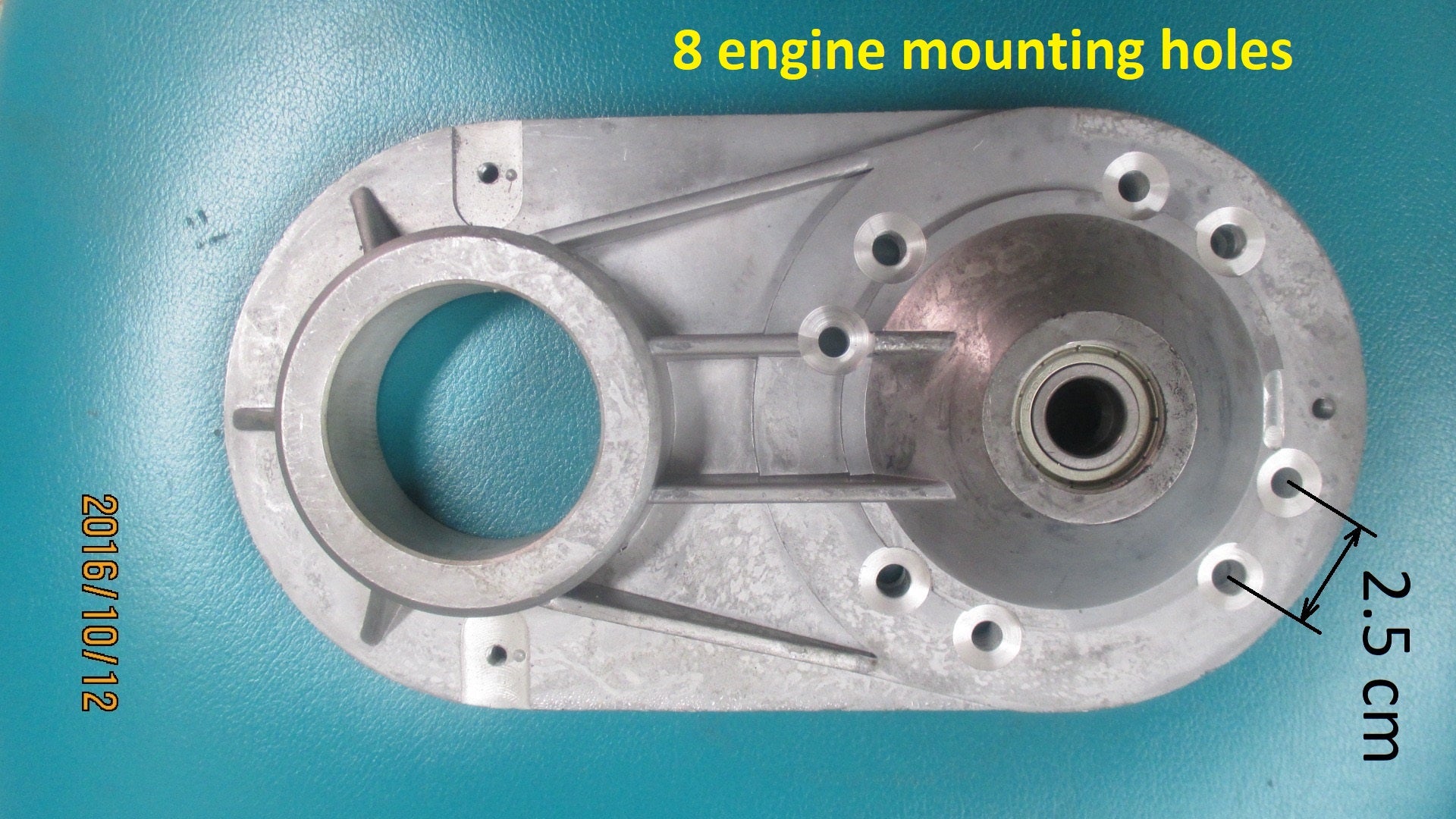

  • Starting 2017 all 1B transmissions have 8 mounting holes to enable using 10G 1BMS Multispeed right side drive for a 10 degree downward mount..

  • This kit comes with a clamp to spokes rear sprocket but we high recommend you use a HD axle #2 to enhance reliability and safety.

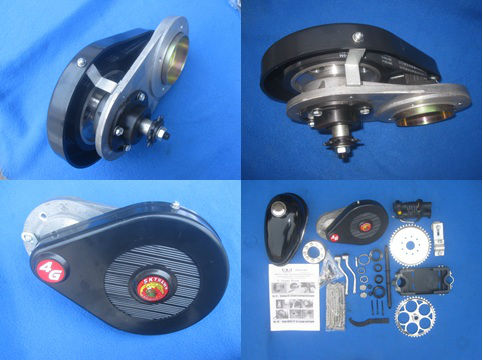

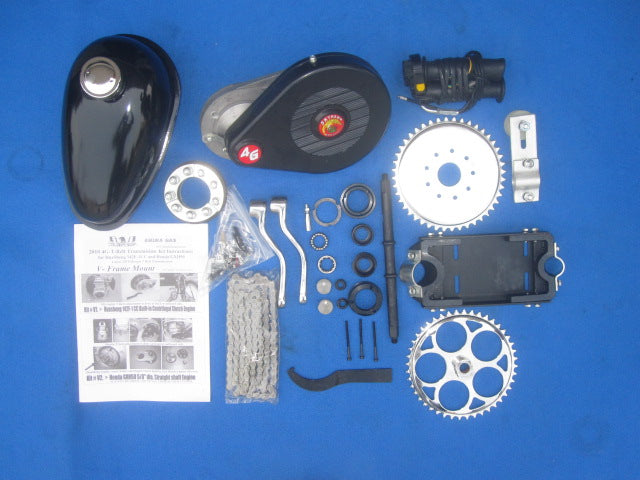

List of parts included with a 4G 1B kit.

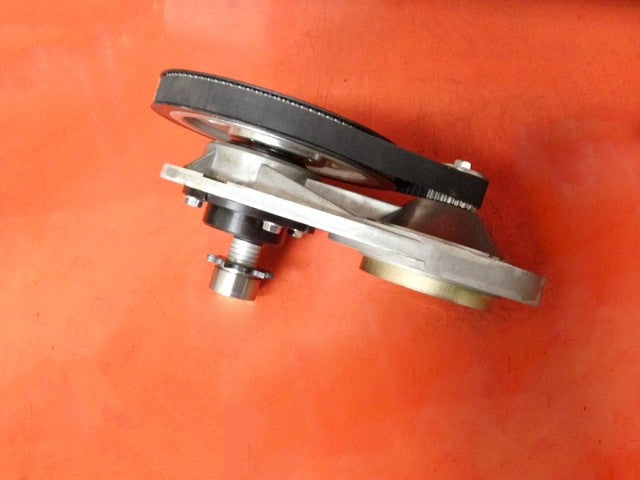

    • Model 1B 20Tx100T T-Belt Transmission  with 9T and 10T drive sprockets;   ( 8 engine mounting holes: )

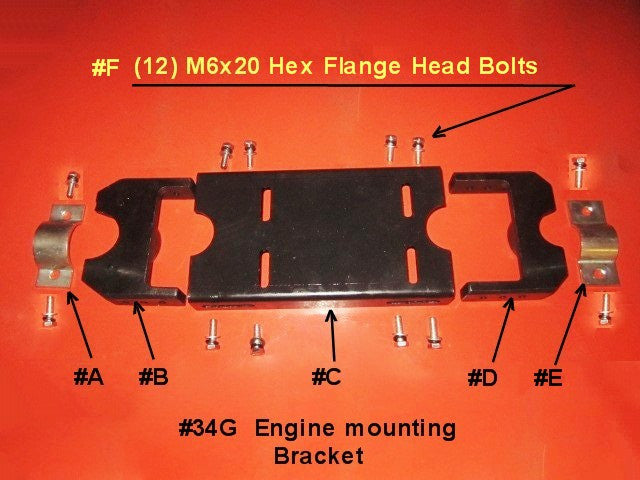

    • Adjustable engine bracket.  2 cast iron ends with steel top plate.

    • Handlebar twist grip throttle with kill switch

    • 2.5L gas tank plated inside to prevent rusting

    • Brass shut off valve for gas tank

    • Clamp to spokes 48T bike wheel chain sprocket with installation kit;

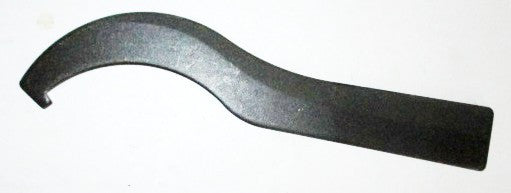

    • Belt adjustment spanner wrench

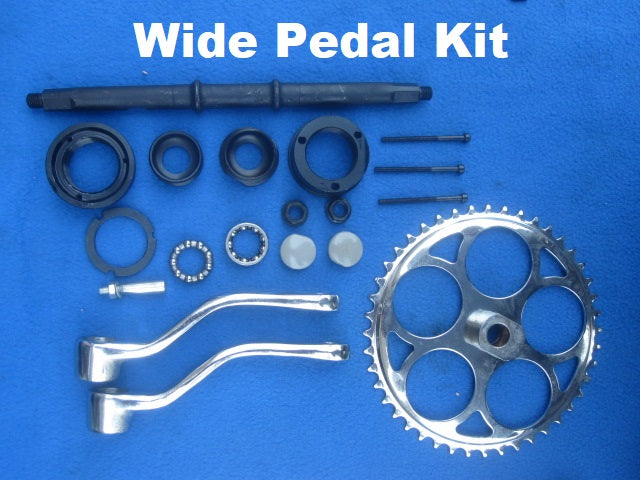

    • Complete Wide Pedal kit with conversion kit for big and small  hole.

    • Ball bearing chain idler

    • Instruction manual

    Bicycle and engine shown for illustration only and are NOT included with this kit.  Order HuaSheng engine separately.

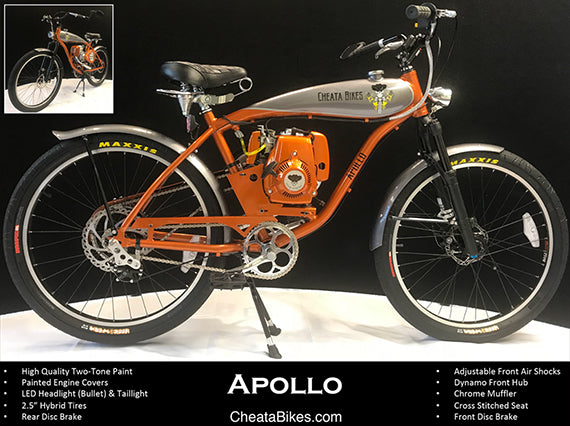

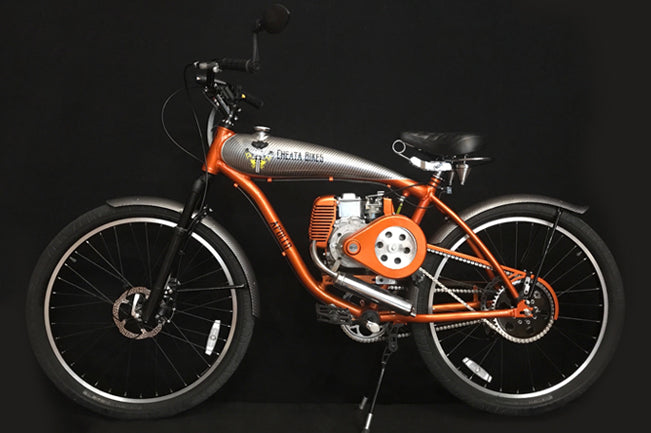

      Should you want to buy a ready made 4 STROKE ENGINE bike made by a professional company we recommend the CHEATA BIKE COMPANY based out of Milwaukee Wi.      www.cheata bikes.com See attached pictures of their masterpieces.
