Fits 66cc high pin piston engines with 47x38mm bore and stroke.

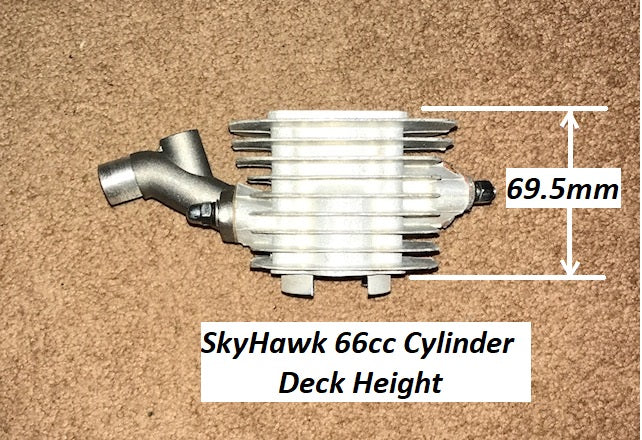

This SkyHawk Cylinder deck height is 69.5mm for 38mm stroke engines and gives an exhaust port timing of 143 degrees and a transfer port timing of 120 degrees!
Heads up: DO NOT USE with 40mm stroke engines that have a cylinder deck height of 70.5mm. Even if you add a 1mm extra bottom gasket the port timing will be off and will result in a poor running engine. Therefore, don't do it.
Intake and exhaust port stud center line to center line spacing is 40mm.

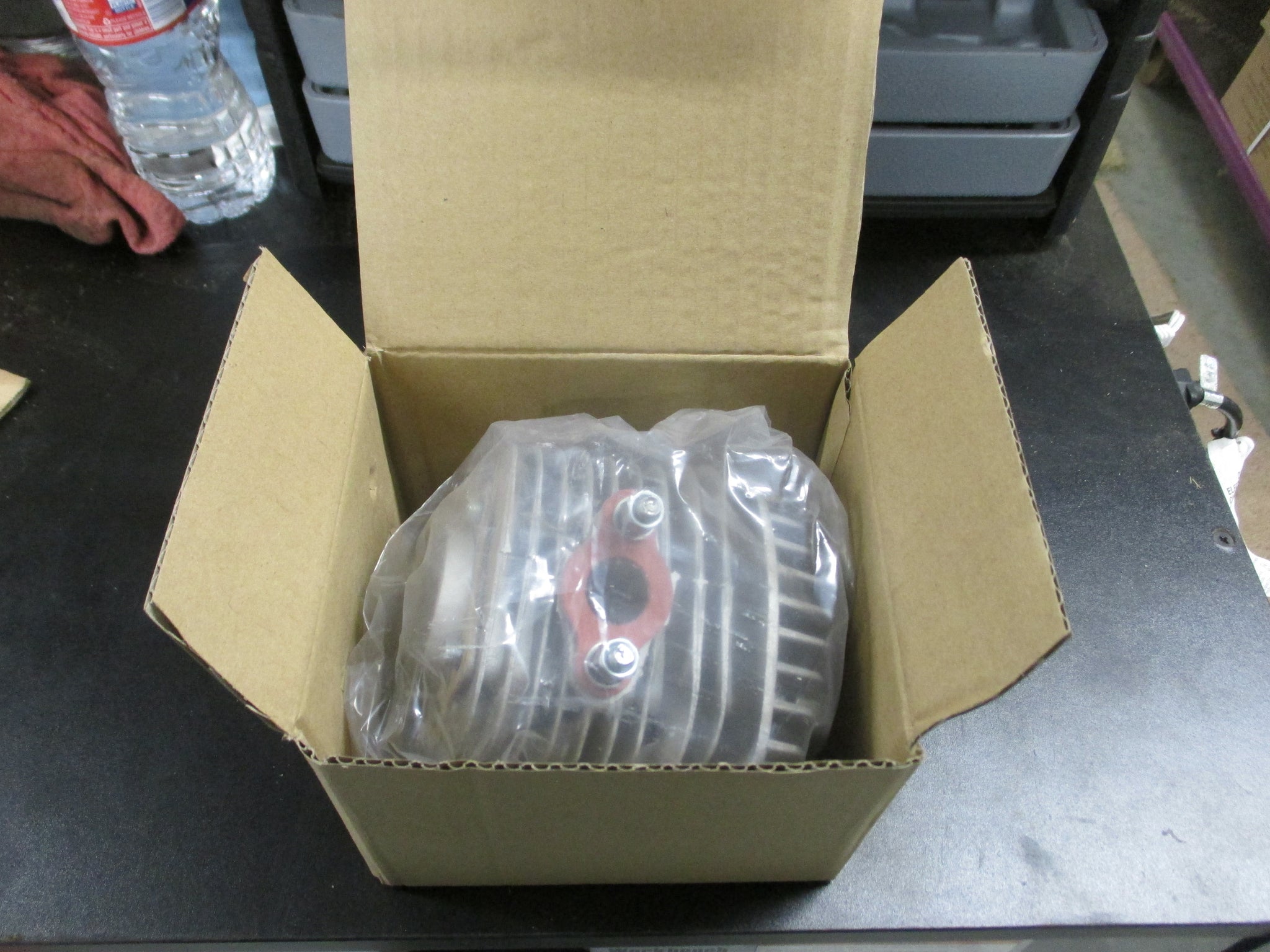

Complete cylinder kit for SkyHawk Gt5, Gt5A and Gt5a-ES and other 66cc 47x38 engines with hi pin pistons with long conn rods.
Includes:
Angle Fire Head,
69.5mm deck height HP Cylinder with big round hole exhaust port.
40mm stud spacing for both intake and exhaust.
High pin Piston and rings with 10mm dia. wrist pin, needle brg. and (2) G clips,
4 Gaskets, M8 head bolts, M8 nuts are substituted for acorn nuts.
40mm Intake tube
No spark plug is included so best order those items separately if needed. Cost to ship a spark plug can be included with this cylinder kit at no extra cost.
WARNING: Be sure you know your engine and have determined the above specs are what you need. This is a non-returnable item! It will not work for engines with 70.5mm deck height and 47 x 40 bore and stroke 69cc engines.
